PZ573X Bevel Gear Slurry Valve
Product overview
Product model: PZ573X
Nominal diameter: NPS 2" ~ 32", DN50 ~ 800mm
Pressure range: CL150, PN1.0 ~ 16.0MPa
Operating temperature: -10℃~120℃
Main material: carbon steel, stainless steel
Design standard: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature rating: ASME B16.34, GB/T 12224
PZ573X Bevel Gear Slurry Valve basic information
PZ573X Bevel Gear Slurry Valve produced and sold by Baigang valve group has simple and compact structure, reasonable design, lightweight materials, sealing is reliable, flexible and convenient operation, small volume, smooth channel, small flow resistance, light weight and easy to install, easy to remove, can in the work pressure 1.0 MPa to 2.5 MPa, in the case of temperature - 29-650 ℃ to work normally.

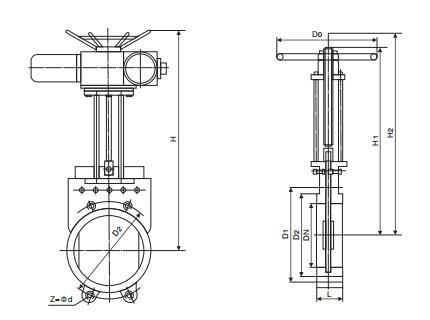

PZ573X Bevel Gear Slurry Valve main shape and connection dimension
|
MPa |
DN |
L |
D |
D1 |
H |
N-M |
|
1.0 |
50 |
40 |
125 |
95 |
425 |
4-M16 |
|
65 |
40 |
145 |
110 |
475 |
4-M16 |
|
|
80 |
50 |
160 |
127 |
505 |
8-M16 |
|
|
100 |
50 | 180 |
149 |
580 |
8-M16 |
|
|
125 |
50 |
210 |
174 |
655 |
8-M16 |
|
|
150 |
60 |
240 |
199 |
745 |
8-M20 |
|
|
200 |
60 |
295 |
250 |
890 |
8-M20 |
|
|
250 |
70 |
350 |
310 |
1125 |
12-M20 |
|
|
300 |
70 |
400 | 360 |
1325 |
12-M20 |
|
|
350 |
96 | 460 | 416 |
1480 |
16-M20 |
|
|
400 |
100 | 515 | 466 |
1645 |
16-M24 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the PZ573X Bevel Gear Slurry Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
