Your current location: ProductsBall ValveTrack Ball Valve

GQ47H Track Ball Valve

Product overview

Product model: GQ47H
Nominal diameter: DN25~500mm
Nominal pressure: PN1.6~2.5MPa
Operating temperature: -190 ~ 550℃
Applicable medium: water, steam, oil
Main material: WCB
Structure length: JB/T7745 GB/T12221
Connection flange: GB/T9113 JB/79 HG20592
Butt-welding end: GB/T12224
Inspection and test: JB/T9092

GQ47H Track Ball Valve product details

GQ47H Track ball valve Product Overview:
Baigang valve group production sales GQ47H track ball valve valve group compared with the traditional ball valve, floating or fixed sphere and valve seat contact all the time, switching torque, the sealing surface is easy to damage, the red ball valve in the opening and closing valve orbit, sphere deflection - the delta Angle first, and then turn, switch sphere and valve seat during the whole process from, so the seat will not be scraped, and open-close torque is small.Suitable for petrochemical, liquefied petroleum gas storage, refineries, natural gas, compressor systems, oil and gas pipeline, light industry, textile and other industries.

GQ47H Track ball valve Features:
(1) Open and close without friction. This feature completely solve the traditional valve seal surface friction between the impact of sealing problems
(2) the body structure. On the pipeline installed on the valve can be directly online inspection and maintenance. Can effectively reduce plant parking, reduce production costs
(3) single seat design. Elimination of the valve cavity medium due to abnormal pressure and affect the safety of the problem
(4) Low torque design. Special design of the stem, just with a small hand wheel valve can easily open and close
(5) wedge seal structure. Valve is provided by the stem of the mechanical force, the ball wedge pressed to the seat and sealed. So that the sealing performance of the valve from the impact of pressure changes in the pipeline under various conditions have a reliable sealing performance
(6) self-cleaning sealing surface structure. When the ball is disengaged from the valve seat, the fluid in the pipeline will pass through the ball sealing surface 360 ° evenly. Not only eliminates the high-speed fluid on the seat of the local erosion, but also washed away the sealing surface of the accumulation of objects to achieve self-cleaning purposes.

GQ47H Track ball valve performance parameters:

Model		GQ47H-16C	GQ47H-25C
Working pressure (MPa)		1.6	2.5
Working temperature (℃)		-190 ~ 550
Suitable media		Water, steam, oil
Material	Body, bonnet	WCB
	Valve stem	2Cr13
	Sphere	WCB + HCr / STL
	Seat	25
	filler	Flexible graphite

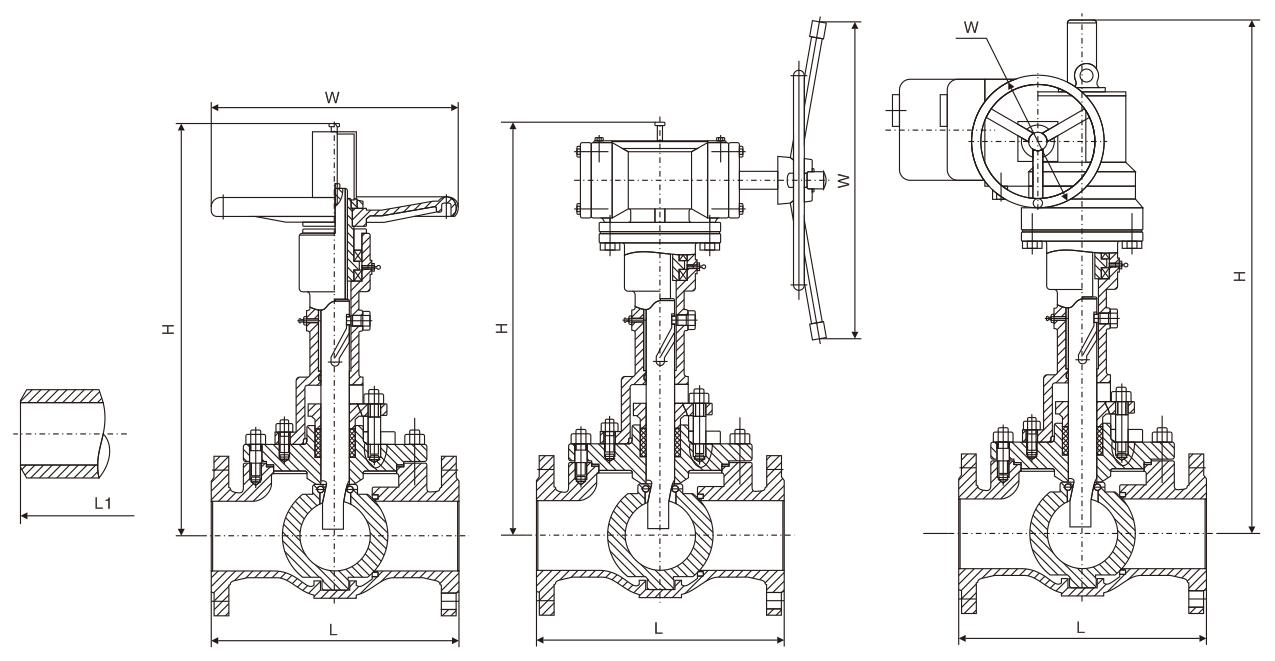

GQ47H Track ball valve main dimensions :

Nominal pressure	Main dimensions	Nominal diameter
Nominal pressure	Main dimensions	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500
PN1.6MPa	L	100	180	200	230	290	310	350	480	480	600	730	850	980	1100	1200	1250
	H	24	260	307	360	410	483	512	581	581	617	672	723	758	791	828	870
	kg	9.5	16	19	28	30	41	55	115	115	215	270	385	502	876	980	1240
PN2.5MPa	L	160	180	200	230	290	310	350	480	480	600	730	850	980	1100	1200	1250
	H	260	280	320	260	430	490	525	604	604	642	695	742	781	815	864	905
	kg	9.5	16	19	28	30	45	59	121	121	230	289	402	540	913	1120	1280
PN4.0MPa	L	160	180	200	230	290	310	350	480	480	600	730	850	980	1100	1200	1250
	H	260	280	320	360	436	492	527	649	649	701	750	750	790	832	875	910
	kg	10	17	20	25	32	45	59	115	115	2130	295	402	540	913	1124	348
PN6.4MPa	L	160	180	200	230	290	310	350	480	480	600	730	850	980	1100	-	-
	H	280	300	329	365	450	509	541	725	725	781	790	806	821	858	-	-
	kg	10	17	20	25	32	52	68	106	168	281	355	498	689	1134	-	-
150Lb	L	127	140	165	178	190	203	229	356	394	457	533	910	686	762	964	914
300Lb	L	165	178	190	216	214	283	305	381	403	502	568	648	762	838	914	991
600Lb	L	216	229	241	292	330	356	432	508	559	660	787	838	889	991	1092	1194

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the GQ47H Track Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
